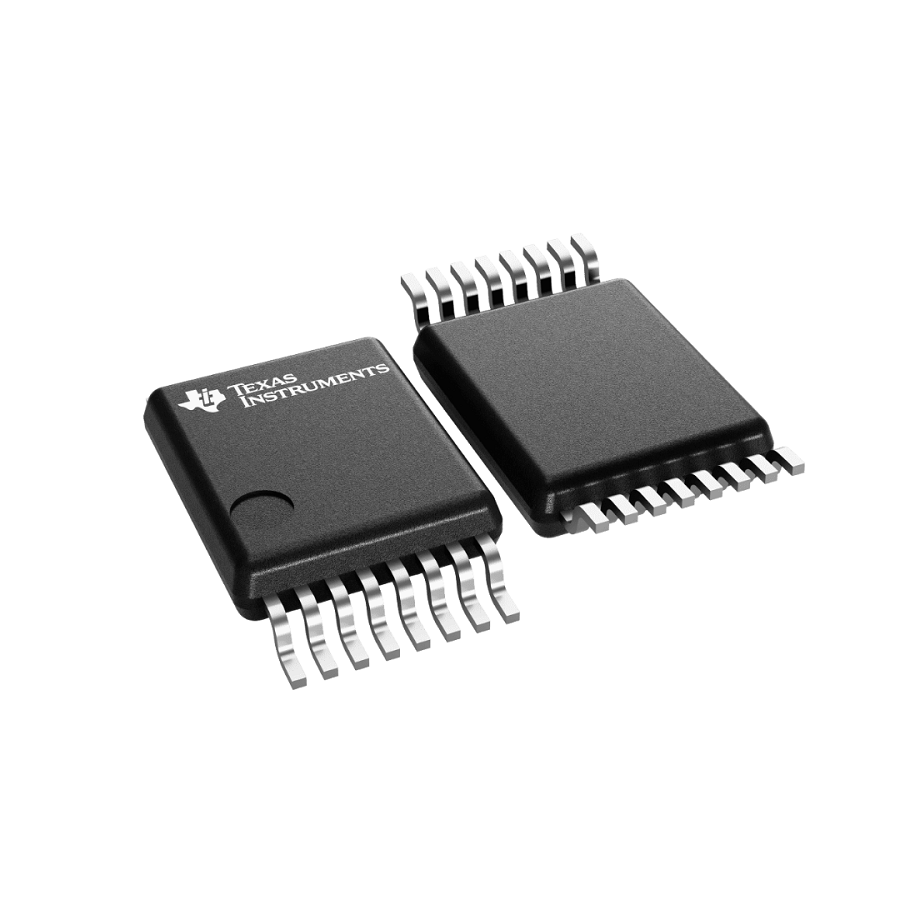

SN74LV123ADGVR
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74LV123ADGVR
Datasheet:
Description:
Logic ICs TVSOP-16 SMD/SMT Multivibrator
| Parameter | Value |
|---|---|
| Length | 3.6 mm |
| Width | 4.4 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 1.2 mm |
| Packaging | Reel |
| Thickness | 1.05 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 2 |
| Output Current | 12 mA |
| Number of Circuits | 2 |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2 V |
| Number of Bits | 2 |
| Turn-On Delay Time | 44 ns |
| Quiescent Current | 20 µA |
| Propagation Delay | 13 ns |
| High Level Output Current | -12 mA |
| Low Level Output Current | 12 mA |
| Logic Function | Multivibrator |
| Independent Circuits | 2 |
| Schmitt Trigger Input | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
Stock: 871
Distributors
pcbx
pcbxUnit Price$0.44638
Ext.Price$0.44638
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44638 | $0.44638 |
| 10 | $0.31526 | $3.15260 |
| 25 | $0.28326 | $7.08150 |
| 50 | $0.26483 | $13.24150 |
| 100 | $0.24760 | $24.76000 |
| 300 | $0.23364 | $70.09200 |
| 500 | $0.22046 | $110.23000 |
| 1000 | $0.21689 | $216.89000 |
